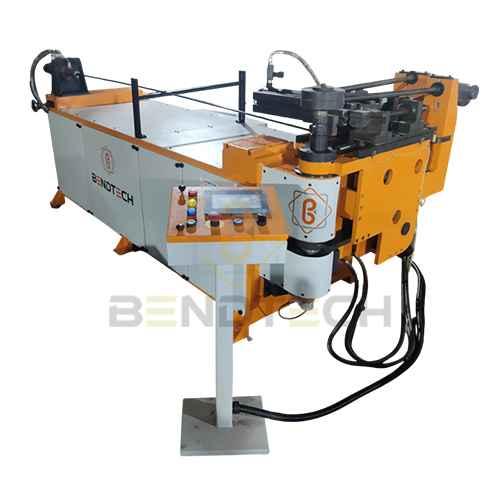

Single Cylinder Hydraulic Pipe Bending Machine
| Categories | Hydraulic Pipe Bending Machine |
|---|---|
| Brand | BendTech Engineers (Brand Name:- BTE) |
| Model | BTE-SCHPBM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Hydraulic |
| Automation | Manual |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By Push Button Operation |
| FOB port | Mundra Port (Gujarat) , Nahva sheva Port (Maharastra) |
| Download DOC |  |
Description
The Product Single Cylinder Hydraulic Pipe Bending Machine specially developed product for whom having less number of production work with highly efficient and good quality bending Work. Machine is Robust in design with Degree Accuracy ±1.5%.
Features
- Suitable For Bending The Angle From 0°To 180°Can Be Adjusted Randomly.
- It Has The Function Of Both Manual And Automatic Concurrently, And Enclosed The Emergency Stop Device.
- Can Be Set Various Angles And Mutual Take Turns Bending, So Avoid The Trouble Of Transfer.
- Host Machine Is Controlled By Electric Equipment, Even Though Unskilled Worker Can Join The Produce Procession Promptly, Too.
- Limit Switch For Angle Setting For More Accuracy.
- Longer Functional Life Due To Robust Mechanical Design.
- Smooth Performance.
Application Areas
- Furniture
- Two wheeler accessories
- Decorative items
- Automotive Seat Frames
- Crash Guards
- Hydraulic piping
- Chemical and Process Tubes & Heat Exchanger Concentric Tubes
| Sr. No. | Item Description | |||
| 1 | MODEL NO:- | BTE-1SCHPBM | BTE-1.5SCHPBM | BTE-2SCHPBM |
| 2 | Pipe Size | Up to 25 mm | Up to 38 mm | Up to 50 mm |
| 3 | Pipe Thickness | 1 to 3mm | 1 to 3mm | 1 to 3mm |
| 4 | Structure Material | M.S Rectangular pipe | M.S Rectangular pipe | M.S Rectangular pipe |
| 5 | Electrical Motor | 2 HP | 3 HP | 5 HP |
| 6 | Motor Make | Crompton Greaves | Crompton Greaves | Crompton Greaves |
| 7 | Hydraulic valve | Make:- Huade / Yuken | Make:- Huade / Yuken | Make:- Huade / Yuken |
| 8 | Hydraulic Pump | Make:- Oiler / Dowty | Make:- Oiler / Dowty | Make:- Oiler / Dowty |
| 9 | Hydraulic Tank Size | 30Ltr. | 40Ltr. | 50Ltr. |
| 10 | Forward Reverse Switch | |||
| 11 | Accuracy | ±1.5 Degree | ±1.5 Degree | ±1.5 Degree |
| 12 | Electronic Panel & Switches | Make:- Schneider | Make:- Schneider | Make:- Schneider |
| 13 | Bending Direction | Anti Clockwise | Anti Clockwise | Anti Clockwise |
| 14 | Limit Switch for Safety purpose. | |||
| 15 | Clamping & Dis-clamping of the pipe will be by Screw operated. | |||
| 16 | Bending operation preformed Hydraulically With Rack Pinion & Hydraulic Cylinder Arrangement and it will operated by Reverse Forward Switch in remote box. |
|||
| 17 | All Shafting and Gears are Hardened | |||
| 18 | M.S Square Pipe framed Heavy Powder coated Structure | |||
