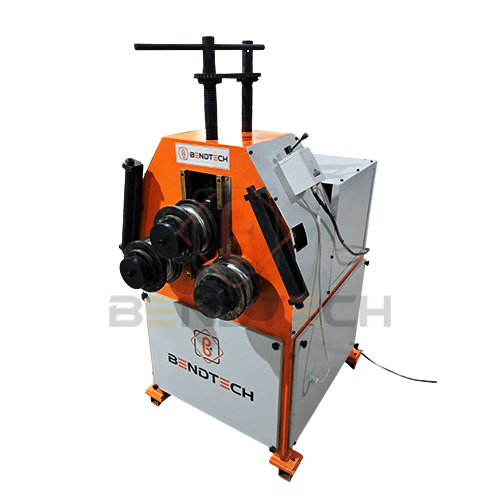

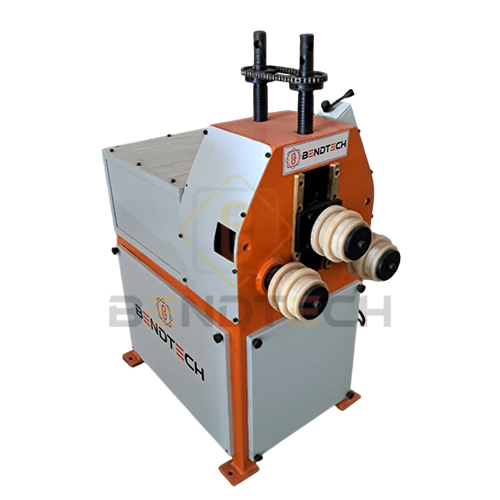

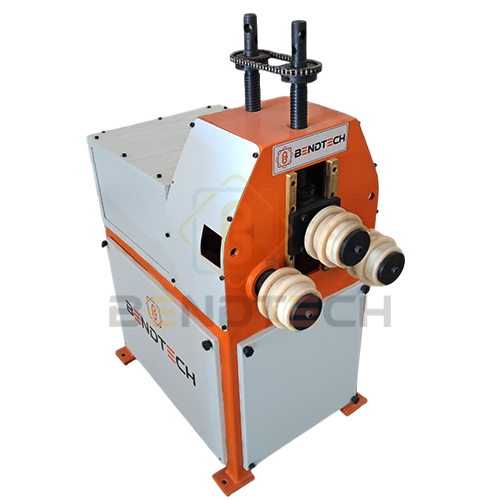

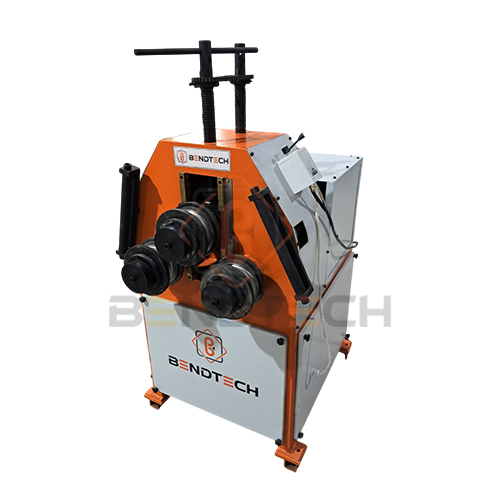

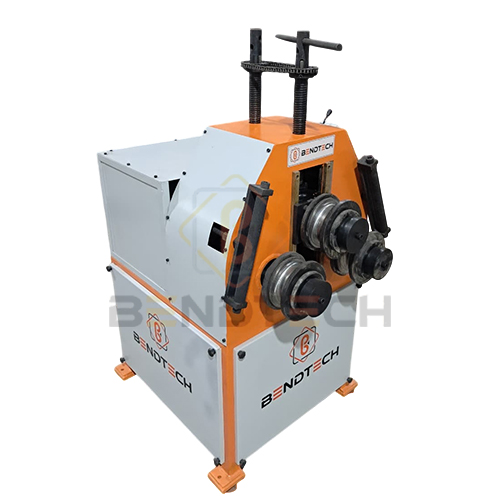

Mechanical Three Roller Pipe Bending Machine - Bendtech Engineers
| Categories | Three Roller Pipe Bending Machine |
|---|---|
| Brand | BendTech |
| Model | BTE-MTRPBM |
| Condition | New |
| Raw Material | Round Pipe, Square & Rectangular Pipe, Angle, C-Channel, T-Section, Flats |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Mechanical |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By RF Switches |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
| Download DOC |  |
Description
The Product Single Cylinder Hydraulic Pipe Bending Machine specially developed product for whom having less number of production work with highly efficient and good quality bending Work. Machine is Robust in design with Degree Accuracy ±1.5%.
BTE- Three Roller Pipe Bending Machine made of welded and mechanized steel plates. Different from others, this one is not made of cast iron. Ideal for making flanges, greenhouses, balusters, tables, chairs, doors, windows. Making a great number of circular shapes in all kinds of profiles. Its robustness, axis diameter, reducer capacity and other features, make it one of the best bending machines in the market, within the category of three traction rollers, which is an essential condition to work with pipes and obtain a perfect finish.
- Processes mechanical transmission with compact form and high reliability & Low maintenance
- It can process different profiles like angle iron, flat iron, round pipe and other different section.
- Tie bar accessorized it increases shaft rigidity to ensure radius repeatability and accuracy, recommended for high well thickness and heavy duty profiles
- Roll set in nylon for tubes in aluminium, stainless steel and other light alloys
- It can produce profiles with large radius without making super size moulds
- This machine drives stably and can processing different round, arc and spire.
- Model with manual screw pressure
- Machine model available up to Pipe Size: 10 mm to 120 mm.
Features
- Impeccable functionality
- Commendable strength
- Superior service life.
- Easy to operate.
| Model | BTE-1 MATRPBM | BTE-2 MATRPBM | BTE-3 HATRPBM |
| Pipe Size | 10mm to 25.4 mm | 12.7mm to 50mm | 12.7mm to 75mm |
| Pipe Wall Thickness (M.S) | 1mm to 3 mm | 1.2mm to 2.5mm | 1.2mm to 3mm |
| Pipe Wall Thickness (S.S) | 1.2mm to 2 mm | 1.2mm to 2mm | 1.2mm to 2 mm |
| Bending Direction | Clockwise/Anticlockwise | Clockwise/Anticlockwise | Clockwise/Anticlockwise |
| Bending Speed | 9 RPM | 9 RPM | 7 RPM |
| Max Hydraulic Pressure | 150 Bar | 200 Bar | 200 Bar |
| Operating Voltage | 415V , 50 Hz,3 Ph | 415V,50 Hz,3 Ph | 415V,50 Hz,3 Ph |
| Mechanical Motor Power | 2 HP | 3 HP | 5 HP |
| Pipe Bending Material | MS / SS /AL/Cu | MS / SS /AL/Cu | MS / SS /AL/Cu |
| Sr. No. | Details | Specification | Specification | Specification |
| 1 | Model No. | BTE-1MSRBM | BTE-2MSRBM | BTE-3MSRBM |
| 2 | Pipe Size | Up to 25mm | Up to 50mm | Up to 75mm |
| 3 | Pipe Thickness | 1 to 2 mm | 1 to 3 mm | 1 to 3 mm |
| 4 | Electrical Motor | 2 Hp | 3 Hp | 5 Hp |
| 5 | Gear Box | Yes ( Standard Make) | Yes ( Standard Make) | Yes ( Standard Make) |
| 6 | Bend Direction | Clockwise & Anticlockwise | Clockwise & Anticlockwise | Clockwise & Anticlockwise |
| 7 | Forward Reverse Operation | By Switch Operation | By Switch Operation | By Switch Operation |
| 8 | Side Guide Rollers For Pipe Support | Yes | Yes | Yes |
| 9 | Double Screw For Extra Support | No | No | Yes |
