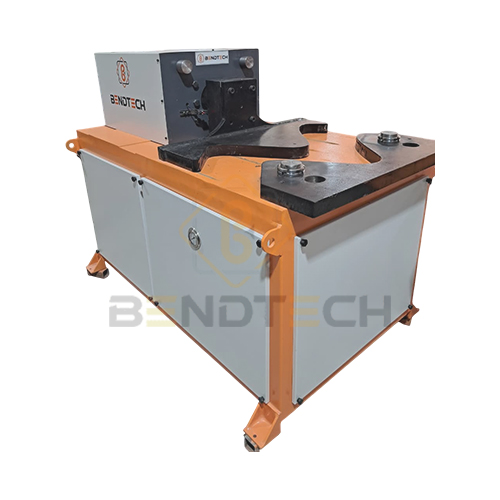

Heavy Duty Three Roller Pipe Bending Machine (Semi-Automatic Type)
| Categories | Heavy Duty Three Roller Pipe Bending Machine |
|---|---|
| Brand | BendTech |
| Model | BTE-HDTRPBM |
| Condition | New |
| Raw Material | Round Pipe, Square & Rectangular Pipe, Angle, C-Channel, T-Section, Flats |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Mechanical |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By RF Switches |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
| Download DOC |  |
| Model | BTE-4 HATRPBM | BTE-5 HATRPBM | BTE-6 HATRPBM |
| Pipe Size | 10mm to 114 mm | 12.7mm to 138 mm | 12.7mm to 168 mm |
| Pipe Wall Thickness (M.S) | 1mm to 4 mm | 1.2mm to 4 mm | 1.2mm to 5 mm |
| Pipe Wall Thickness (S.S) | 1.2mm to 3 mm | 1.2mm to 3 mm | 1.2mm to 3.6 mm |
| Bending Direction | Clockwise/Anticlockwise | Clockwise/Anticlockwise | Clockwise/Anticlockwise |
| Bending Speed | 6 RPM | 5 RPM | 5 RPM |
| Max Hydraulic Pressure | 150 Bar | 200 Bar | 200 Bar |
| Operating Voltage | 415V , 50 Hz,3 Ph | 415V,50 Hz,3 Ph | 415V,50 Hz,3 Ph |
| Bending Motor Power | 7.5 HP | 10 HP | 15 HP |
| Hydraulic Motor Power | 3 HP | 5 HP | 7.5 HP |
Description
