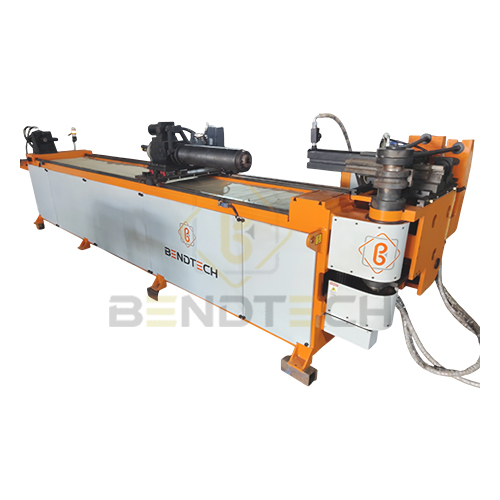

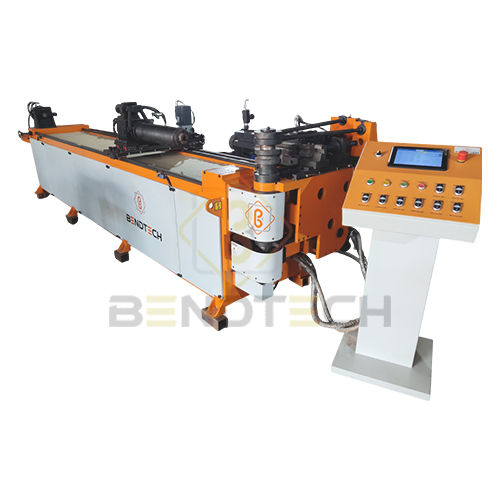

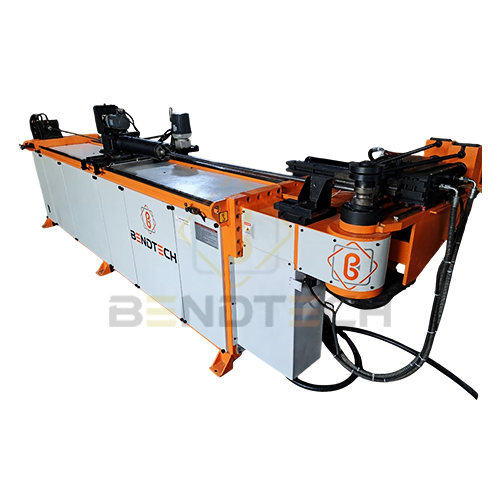

CNC Pipe Bending Machine
| Categories | CNC Pipe Bending Machines (2Axis/3Axis/5Axis) |
|---|---|
| Brand | BendTech |
| Model | BTE-CNCBM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Fully Automatic |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | Controller Based |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
| Download DOC |  |
Description
Our high efficiency 3D CNC automatic hydraulic pipe bending, CNC Pipe Bending Machine using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multi-function; each action of machine is controlled by PLC programmer control system.
Features
- Fully automatic and CNC pipe bending machine.
- Equipped with servo motor programmable axis, 2 axis 3 axis, 4 axis or 5 axis
- Feeding: servomotor drive; rotation: servomotor drive
- Bending: hydraulic and encoder control; servomotor with reducer.
- Imported hydraulic system and PLC unit.
- Self-diagnostic system, detecting the error immediately.
- Multiple groups’ pipe-bending information storage.
- Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
- Touch screen and human/machine interface control provide user friendly operations
| Model | BTE-1CNC/ BTE-1FSCNC | BTE-1.5CNC/BTE-FSCNC | BTE-2CNC | BTE-2.5CNC | BTE-3CNC |
| Pipe Size | 10mm to 25.4 mm | 10mm to 38.1 mm | 12.7mm to 50.8mm | 12.7mm to 63mm | 12.7mm to 89 mm |
| Pipe Wall Thickness (M.S) | 1mm to 2.5 mm | 1mm to 2.5mm | 1.2mm to 2.5mm | 1.2mm to 3mm | 1.2mm to 4 mm |
| Pipe Wall Thickness (S.S) | 1.2mm to 2 mm | 1.2mm to 2mm | 1.2mm to 2mm | 1.2mm to 2.5mm | 1.2mm to 3mm |
| Bending Radius | 1.5D To 3D | 1.5D To 3D | 2D To 3.5D | 2D To 3.5D | 2D To 4D |
| Bending Speed (Degree/Sec) | 180º/12 | 180º/12 | 180º/14 | 180º/14 | 180º/15 |
| Max Hydraulic Pressure | 150 Bar | 150 Bar | 200 Bar | 200 Bar | 200 Bar |
| Operating Voltage | 415V , 50 Hz,3 Ph | 415V,50 Hz,3 Ph | 415V,50 Hz,3 Ph | 415V ,50 Hz,3 Ph | 415V,50 Hz,3 Ph |
| Hydraulic Motor Power | 3Hp | 5HP | 7.5Hp | 7.5 Hp | 10 Hp |
| No Of Servo Motors in 3 Axis CNC | 2 / 3 | 2/3 | 2 | 2 | 2 |
| No Of Servo Motors in 5 Axis CNC | 5 | 5 | 5 | 5 | 5 |

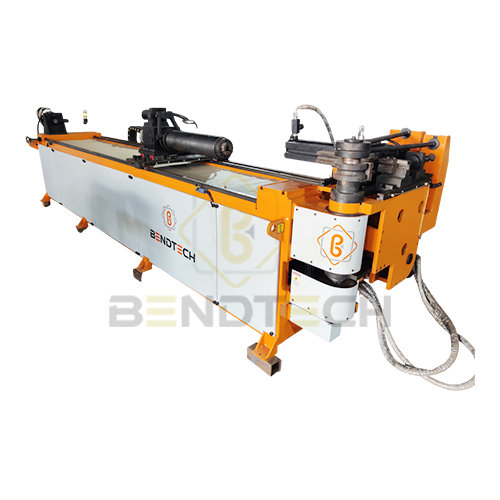

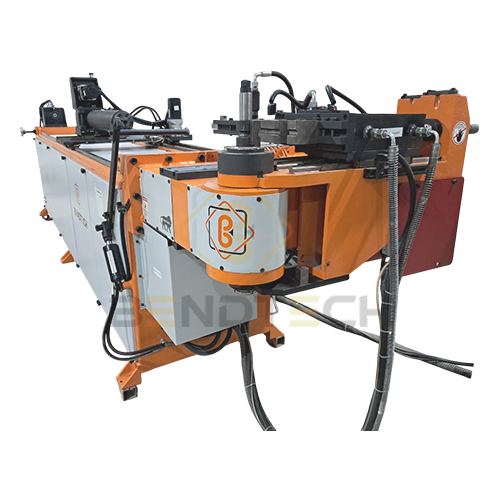

| 3 AXIS CNC PIPE BENDING MACHINE | ||||||
| Sr No | Detail | Specification | Specification | Specification | ||
| 1 | Machine Model | BENDTECH-1.5 CNC | BENDTECH- 2 CNC | BENDTECH- 3 CNC | ||
| 2 | Pipe Size Max | 38mm | 50mm | 75 mm | ||
| 3 | Pipe Size Min | 10 mm | 12.5 mm | 12.5 mm | ||
| 4 | Pipe Wall Thickness | 1.2 mm to 2 mm | 1.2 mm to 3 mm | 1.2 mm to 3 mm | ||
| 5 | Bendino Direction | Clockwise | Clockwise | Clockwise | ||
| 6 | Max. Bending Radius | 3.5D | 3.5D | 3.5D | ||
| 7 | Mini Bending Radius | 2 D | 2 D | 2 D | ||
| 8 | Max Bending Angle | 180 Degree | 180 Degree | 180 Degree | ||
| 9 | Bending Accuracy | ±1.5 % | ±1.5 % | ±1.5 % | ||
| 10 | Bendine Speed | 180/14 sec | 180/14 sec | 180/14 sec | ||
| 11 | Mandrill Length | 2800 mm | 2800 mm | 2800 mm | ||
| 12 | Max Hydraulic Pressure | 150 bar | 150 bar | 150bar | ||
| 13 | Operating Voltage | 415v, 50Hz, 3ph | 415v, 50Hz, 3ph | 415v, 50Hz, 3ph | ||
| 14 | Motor Power | 5 Hp | 7.5 Hp | 15 Hp | ||
| 15 | Hydraulic Valves | Make: Yuken | Make: Yuken | Make: Yuken | ||
| 16 | Motor Make | Crompton Greaves | Crompton Greaves | Crompton Greaves | ||
| 17 | Pipe Clamping and Dis-clamping System | Hydraulic | Hydraulic | Hydraulic | ||
| 18 | Pressure Die Booster | Operated Hydraulically | Operated Hydraulically | Operated Hydraulically | ||
| 19 | Oil CoolingSystem | By Water Cooler | By Water Cooler | By Water Cooler | ||
| 20 | Automatic Oil Lubrication System | Yes | Yes | Yes | ||
| 21 | Electronic Parts | Schneider | Schneider | Schneider | ||
| 22 | Control Panel with PLC | Schneider | Schneider | Schneider | ||
| 23 | Linear Guide Ways | HIWIN/ PMI | HIWIN/ PMI | HIWIN/ PMI | ||
| 24 | Can Add 10 angle in Single Program | |||||
| 25 | Ball Screw For Pipe Reciprocating System | |||||
| 26 | Operatine Manual | |||||
| 27 | Reciprocating Servo (Make: Schneider Panasonic, Delta) | 1 KW | 1.5 KW | 2 KW | ||
| 28 | Rotating Servo (Make:Scheider,Panasoni Delta) | 0.75 KW | 1 KW | 1.5 KW | ||
| 29 | HMI Sere Size | 7′ | 10″ | 10″ | ||
| 30 | One Die Set Providled with Madiine | BendTech | BendTech | BendTech | ||
