Pipe Taper Machine
| Categories | Pipe Taper Machine |
|---|---|
| Brand | BendTech |
| Model | BTE-38*300PTM BTE-50*450PTM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | Mild steel, copper, aluminium etc. |
| Power | Electrical |
| Automation | Manual |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By Reverse Forward Switch |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
| Download DOC |  |

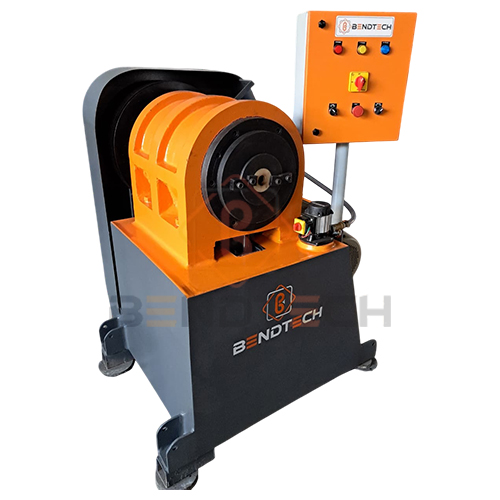

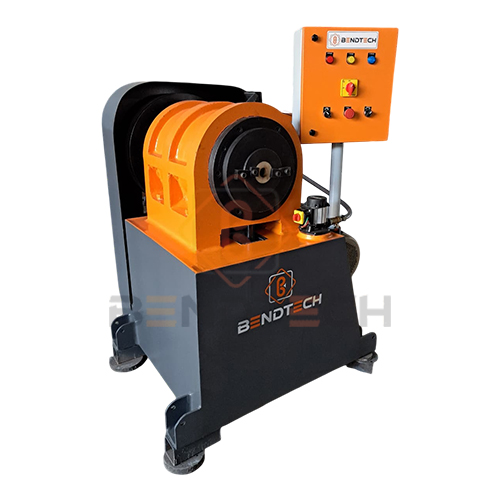

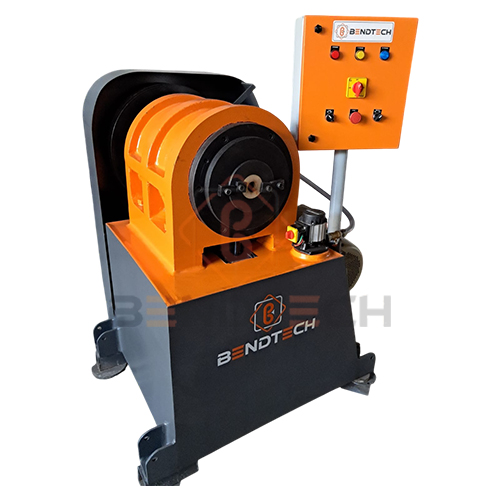

A Tube Taper Machine is a specialized piece of equipment used to reduce or taper the diameter of tubes or pipes at one end, creating a conical or tapered shape. This tapering is crucial for specific applications such as joining, assembly, or improving aerodynamics and aesthetics in various industries. These machines are widely utilized in metal fabrication, automotive, aerospace, and furniture industries.
- Manual taper machine uses advanced technology to process Metal Tubes (Φ16-51mm).
- It has the characteristics of good processing quality, low cost and high efficiency. It is an ideal choice for processing Metal taper tube.
- This machine has fast processing efficiency and 2S forming speed, which is faster than other machines. This machine processes wide wall thickness (0.6mm-1.5mm).
- This machine has Moderate noise and long service life.
Mechanical Characteristics
- The pipe tapering machine can adopt automatic feeding mode to reduce labor intensity
Features
- High efficiency: rapid forming, smooth machining surface, no scars on the work piece. One worker can finish the work of taper pipes which are needed for a construction site.
- Small size, light weight, low noise, easy operation, three-phase and single-phase voltage optional.
- Easy maintenance, low failure rate ,beautiful appearance, compact structure. The mold and the mold seat are sliding to draw, the dovetail mold is convenient for loading and unloading.
Pipe Taper Machine are primarily used to carry liquids and gases it has threaded connections that are gas or liquid tight where tapered pipes help make better seals. Tapered pipe help make better seals. As a result, these connections are stronger and leak resistant. The most common tapered pipe is NPT pipe thread is used in the United States and Canada and is incompatible with BSPT pipe threads. Tapper Piper Machine seals well and no preparation in advance is needed since it can be applied to oily threads. Usually one will use stainless steel tube/pipe tapering machine tapering stainless steel pipe, iron pipe, aluminum pipe and so on. If the piper sizes are smaller pipe than threaded fit-tings are more commonly used to create connections between pipes and equipment (including some instruments). It is common design of tapered pipe fit-ting is the tapered pipe design. The intent of a tapered machine is to allow the pipe and fit-ting to “wedge” together when engaged, creating a joint that is both mechanically rugged and leak-free
Application Areas
| Model | BTE-38 PTM | BTE-50 PTM |
| Processing Pipe Diameter | 10mm to 38 mm | 10mm to 50.8 mm |
| Pipe Wall Thickness | 0.7 mm to 1.5 mm | 0.7 mm to 1.5 mm |
| Max Pipe Taper Length | 300 mm | 450 mm |
| Mold Size (Lx W x H) (mm) | 300 x 36 x 44 | 450 x42x 44 |
| Operating Voltage | 415V , 50 Hz,3 Ph | 415V , 50 Hz,3 Ph |
| Motor Power | 7.5 Hp | 10 Hp |
| Pipe Notching Material | MS / SS /AL/Cu | MS / SS /AL/Cu |
| Pipe Feeding | Manual | Manual |
Performance Characteristics
- Manual taper machine uses advanced technology to process Metal Tubes (Φ16-51mm).
- It has the characteristics of good processing quality, low cost and high efficiency. It is an ideal choice for processing Metal taper tube.
- This machine has fast processing efficiency and 2S forming speed, which is faster than other machines. This machine processes wide wall thickness (0.6mm-1.5mm).
- This machine has Moderate noise and long service life.
Advantage of The Machine
- In structure design, it is more advanced than general cone tube machine, more stable, faster and more efficient in work.
- The clamping die adopts imported type, which has strong clamping force and is not easy to wear and tear.
- There is no phenomenon and doubts about the swing or jump of left and right, and the speed is uniform.
- The machine is driven by belt with high dimensional accuracy and flexible and reliable transmission part. Fast, convenient, efficient, saving labour and processing times, etc.
- Compared with other processing methods, this machine has higher processing efficiency, higher stability and reliability of equipment, and smaller area.
- Machine design structure is reasonable, firm and reliable, stable operation, so that you can operate safely.
