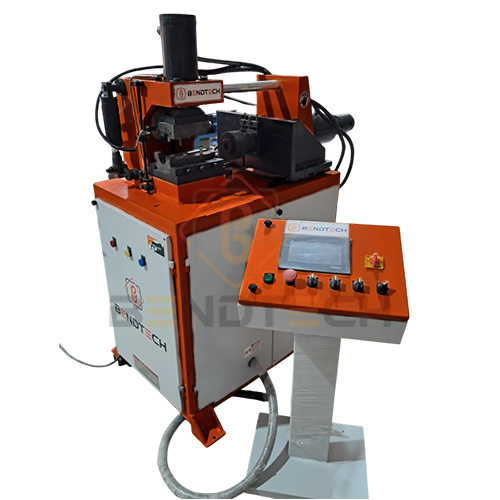

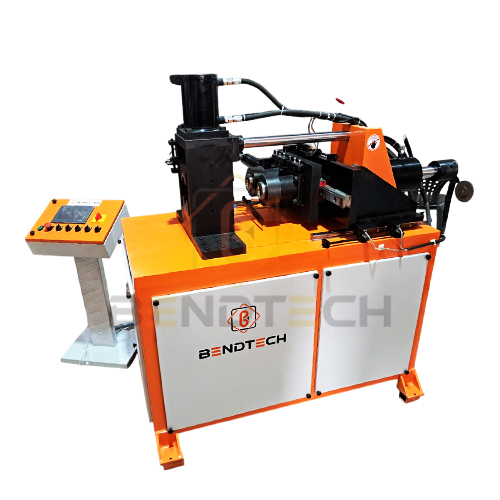

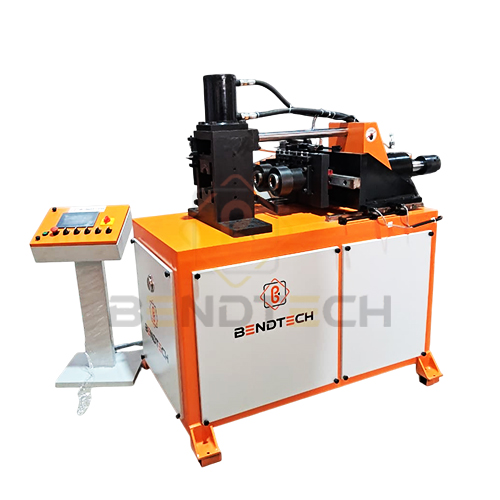

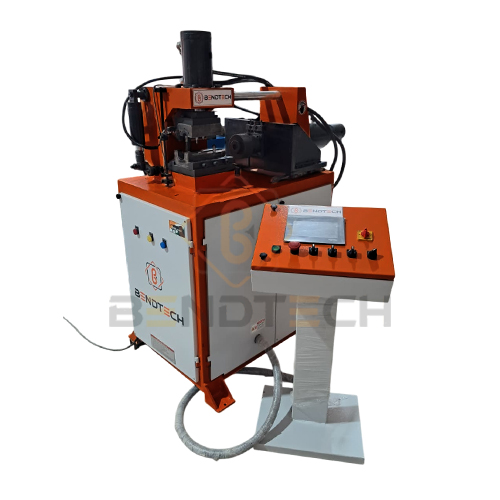

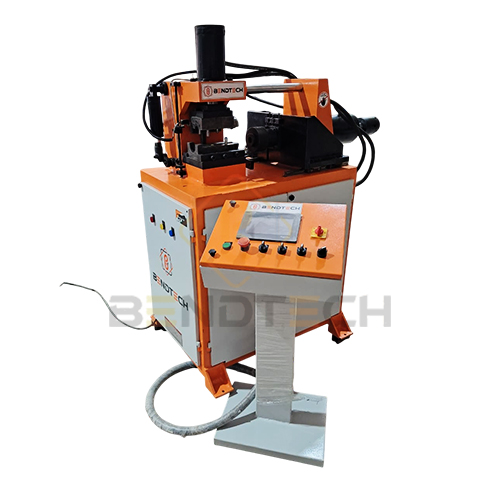

Pipe End-Forming Machine
| Categories | Pipe End-Forming Machine |
|---|---|
| Brand | BendTech |
| Model | BTE-PFM |
| Condition | New |
| Raw Material | Pipe |
| Material / Metal Processed | carbon steel, stainless steel, copper, aluminium, galvanized, etc. |
| Power | Electrical |
| Automation | Automatic |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Operation | By Remote Box |
| FOB port | Mundra Port(Gujarat) , Nahva sheva Port(Maharastra) |
| Download DOC |  |
Category: Uncategorized
Description
A Pipe End Forming Machine is a specialized industrial device used for modifying the ends of metal pipes and tubes to achieve desired shapes or sizes. These machines are widely utilized in industries such as automotive, HVAC, aerospace, furniture, and plumbing, where precise and reliable pipe end modification is required.
It can be Performs operations like flaring, Beading, Swagging & Pipe End Radius. Machines can be semi-automatic or fully automatic, depending on the requirements. There Are Two Different Operational Systems are there in it. One is Single Station operation and other is two station operation.
Features
- Forming Tooling: Customized dies or Molds for specific end shapes.
- HydraulicSystem: Provides the force required for forming operations.
- Clamping System: Holds the pipe securely during operation.
- Safety Features: Guards and sensors to ensure operator safety.
- High precision linear guide rail is adopted for propulsion, which is stable
- High performance imported hydraulic valve elements are used for Mold change. Simple tool change and setting
- Equipped with a hydraulic cooling system to ensure long-term stable operation under high temperature
Pipe End-Forming Machine Material:
- Steel Pipe, Stainless Steel, Copper Pipe, Aluminum Pipe etc.
Main Specification
- NC Control Unit: Easy Operation and Maintenance
- Suitable for the shrinking of various metal pipes with different material and different shape
- Equipped with emergency stop device. Both manual and automatic operations are available
- Shrinking stroke 100mm. The max. work piece length is 450mm, with no minimum work piece length
- Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers’ requirements
| Model | BTE-1 PEFM | BTE-1.5PEFM | BTE-2 PEFM | BTE-3 PEFM |
| Machine Type | Single Station / Double Station | Single Station / Double Station | Single Station/Double Station | Double Station |
| Processing Pipe Diameter | 10mm to 25.4 mm | 10mm to 38.1 mm | 12.7mm to 50mm | 12.7mm to 75mm |
| Pipe Wall Thickness (M.S) | 1mm to 1.5 mm | 1mm to 1.5 mm | 1.2mm to 3 mm | 1.2mm to 3mm |
| Pipe Wall Thickness (S.S) | 0.8 mm to 1 mm | 0.8 mm to 1 mm | 1.2mm to 1.5 mm | 1.2mm to 1.5 mm |
| Max Hydraulic Pressure | 150 Bar | 150 Bar | 200 Bar | 200 Bar |
| Operating Voltage | 415V , 50 Hz,3 Ph | 415V , 50 Hz,3 Ph | 415V,50 Hz,3 Ph | 415V,50 Hz,3 Ph |
| HydraulicMotor Power | 3 HP | 3 HP | 5 HP | 7.5 HP |
| Pipe Forming Material | MS / SS /AL/Cu | MS / SS /AL/Cu | MS / SS /AL/Cu | MS / SS /AL/Cu |
| Cycle Time | 20 to 25 Sec | 20 to 25 Sec | 20 to 25 Sec | 20 to 25 Sec |
| Pipe Feeding | Manual | Manual | Manual | Manual |
